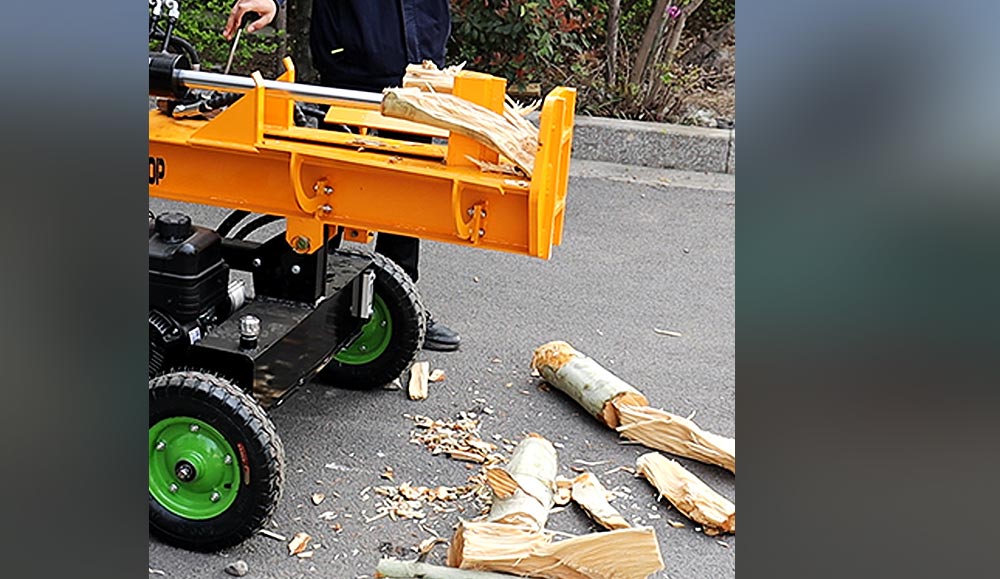

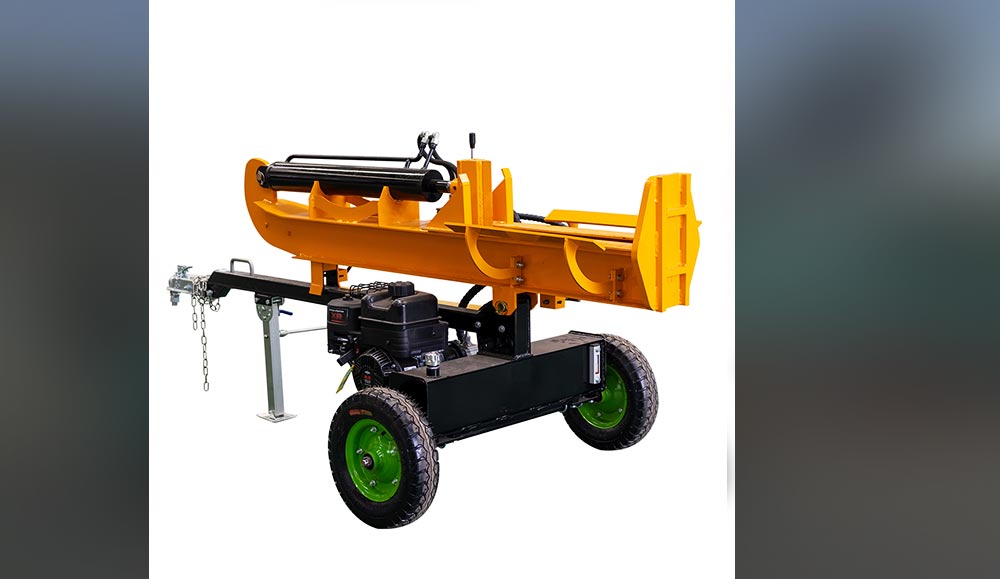

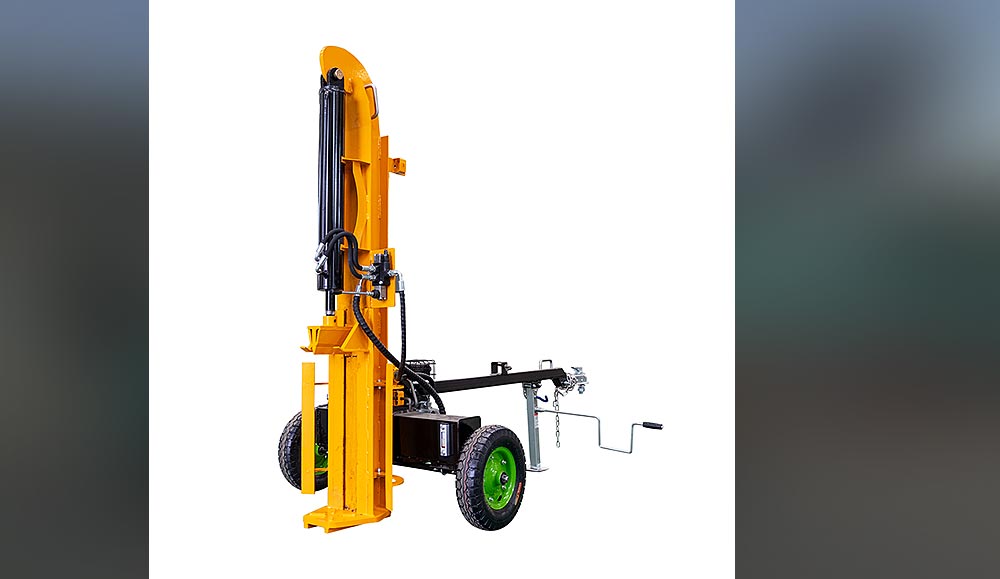

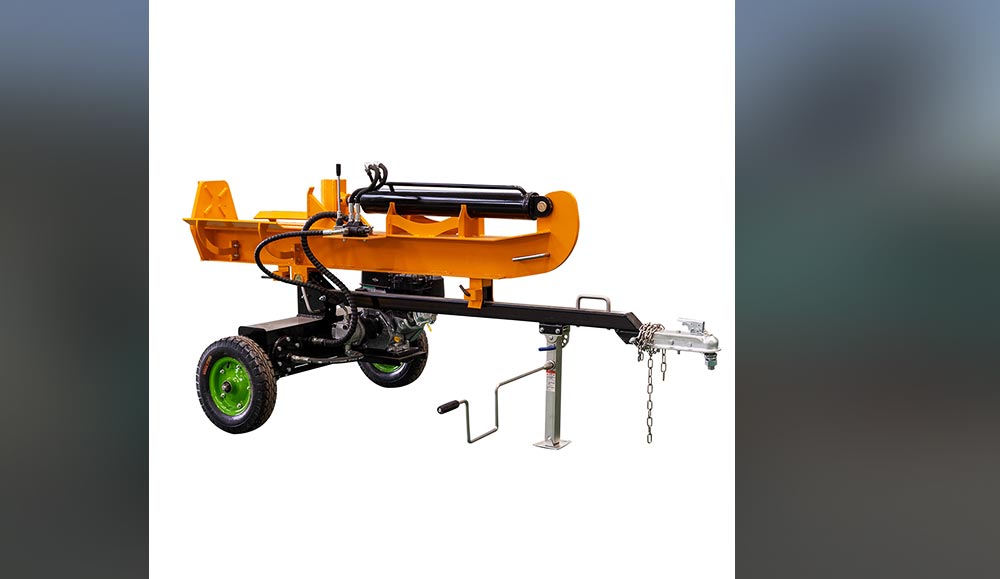

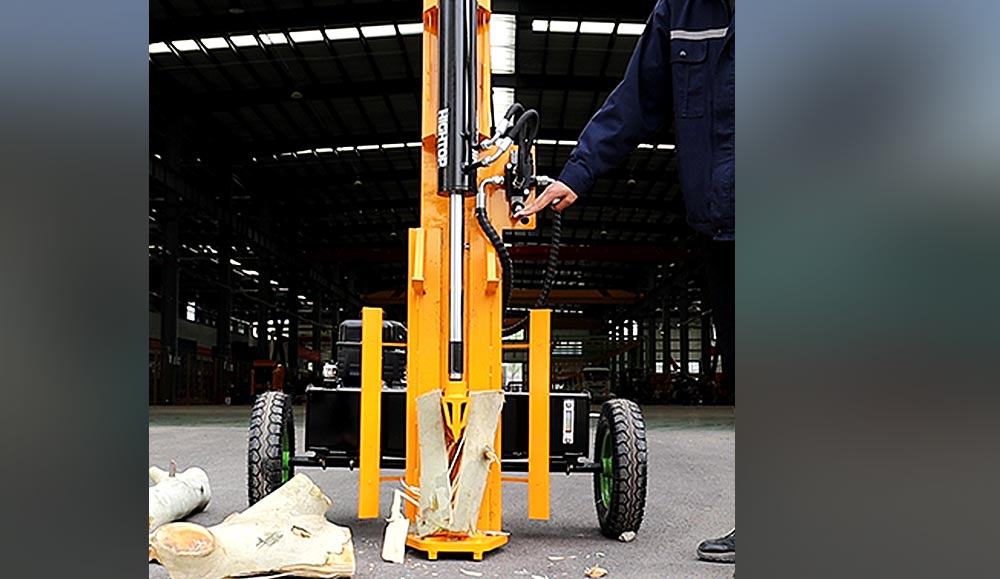

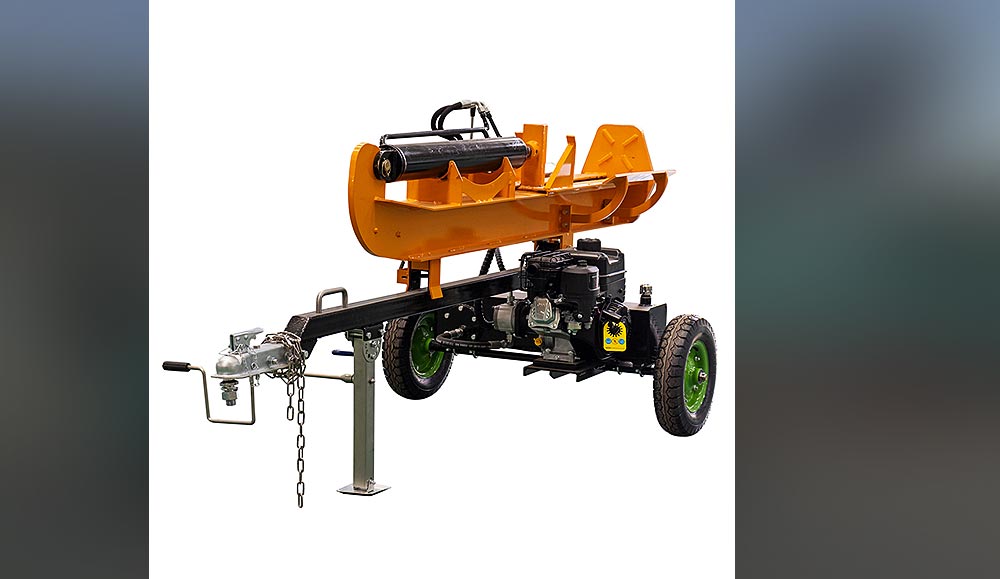

Hydraulic Log Splitter – Model PM80

The PM80 Hydraulic Log Splitter is a powerful and reliable machine designed for efficient firewood splitting. Powered by a proven Briggs & Stratton gasoline engine, it delivers consistent hydraulic performance for residential and professional use.

Key Specifications

• Model: PM80 (HT-PM80)
• Power Type: Hydraulic, gasoline-powered
• Engine: Briggs & Stratton 130G
• Rated Power: 6.5 HP
• Hydraulic Oil Tank Capacity: 17 L
• Total Weight: 220 kg

Splitting Performance

• Maximum Splitting Force: 8 tons
• Maximum Log Diameter: 400 mm
• Maximum Log Length: 630 mm
• Cycle Time: 8 seconds per split

Mechanical Design

• Blade Type: Single-blade splitting wedge
• Blade Material: High-carbon steel, heat-treated
• Cylinder Diameter: 95 mm
• Hydraulic System Pressure: 16 MPa

Dimensions

• Overall Length / Transport Length: 2500 mm
• Overall Width: 1150 mm
• Overall Height: 960 mm
• Operating Height (Erected): 1910 mm

Safety & Operation

• Noise Level: ≤85 dB
• Control Valve: Single valve BDL40-0T-10
• Stable and durable construction
• Easy and safe operation

Applications

• Firewood preparation
• Residential and commercial use
• Farms, woodlots, and property maintenance
