HT13-30 Hydraulic Power Unit

HT13-30 – Multifunction Hydraulic Power Unit

The HT13-30 is a compact and powerful multifunction hydraulic power unit designed for professional use in construction, maintenance, and field operations. Powered by a reliable 13.5 HP gasoline engine with electric start, it delivers consistent hydraulic performance for a wide range of tools and applications.

Built on a rugged steel frame with integrated wheels, the HT13-30 is easy to transport and operate in demanding environments. Its high-efficiency cooling system and durable hydraulic components ensure long service life and stable performance even under continuous load.

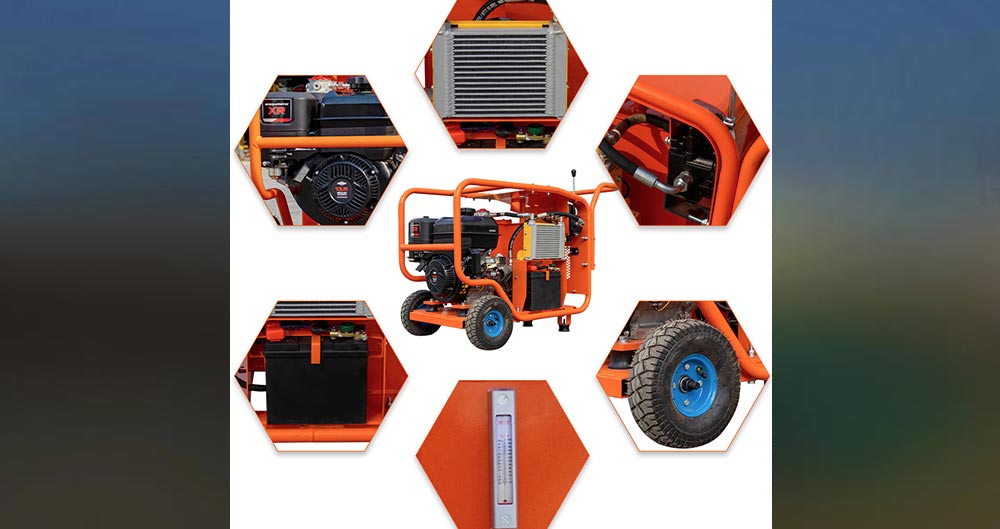

Key Features

Powerful 13.5 HP gasoline engine with electric start
High-pressure hydraulic system up to 18 MPa
Flow rate of 30 L/min for demanding hydraulic tools
Large 50 L hydraulic oil tank for extended operation
Compact, mobile design with heavy-duty steel frame
Efficient radiator cooling system for stable performance
Quick-coupling hydraulic connections for fast tool changes

Technical Specifications

Model: HT13-30
Product Type: Hydraulic Power Unit
Engine Power: 13.5 HP
Engine Type: Single-cylinder gasoline engine
Starting Method: Electric start
System Pressure: 18 MPa
Flow Rate: 30 L/min
Hydraulic Tank Capacity: 50 L
Fuel Consumption: Approx. 2 L/hour
Battery: 12V / 45A
Radiator: 12V / 80A cooling system
Hydraulic Coupling: 3/8" flat-face quick coupler
Control Valve: Two-way control

Applications

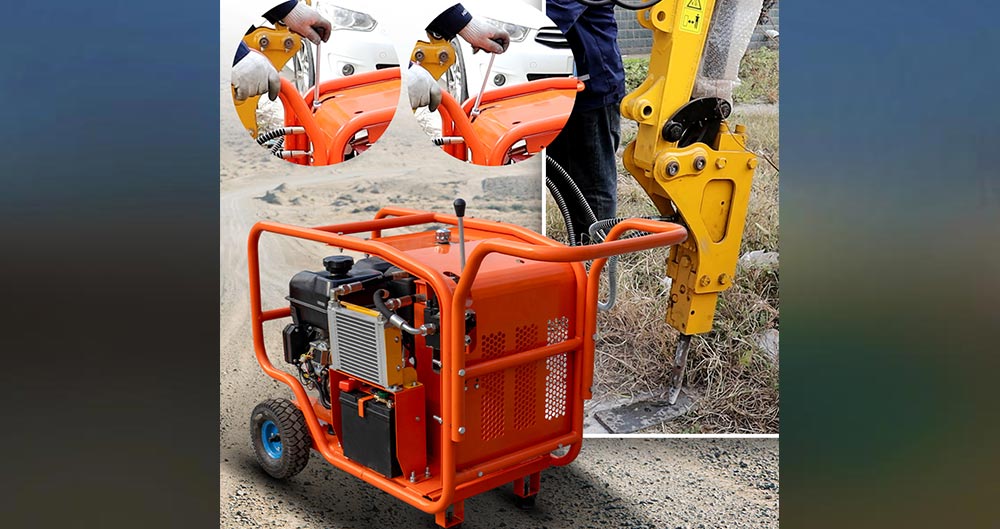

Power supply for hydraulic breakers and hammers
Operation of hydraulic augers and post hole diggers
Hydraulic saws, cutters, and demolition tools
Utility maintenance and emergency response equipment
Mobile hydraulic power source for construction sites

Why Choose the HT13-30?

The HT13-30 offers an excellent balance of power, portability, and reliability. Its high-output hydraulic system and user-friendly design make it an ideal solution for professionals who need dependable hydraulic power wherever the job takes them.
